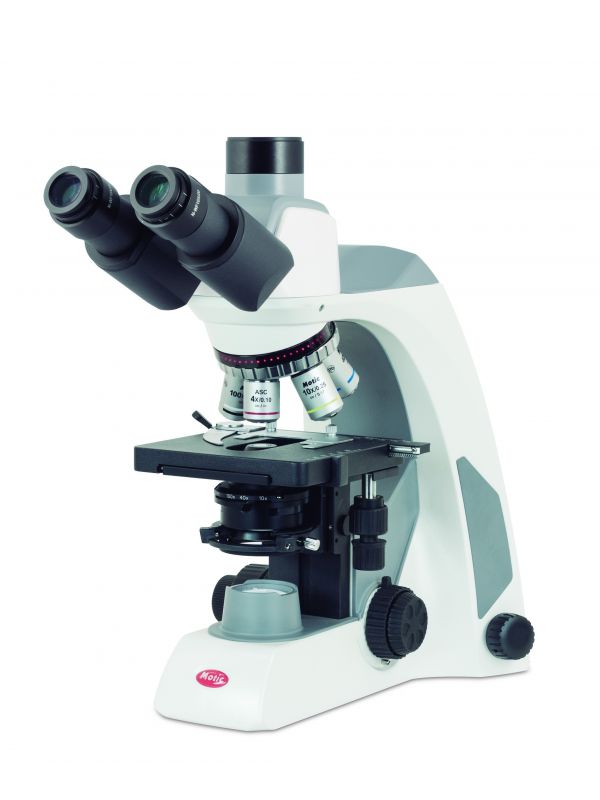

Motic Panthera E2 Trinocular
SKU
1100104601126
$1,608.30
Panthera E is a higher education model. It has a rackless stage and a 360º rotatable head, especially for space-saving storage. It has Plan SC optics and an extreme efficient low power illumination, allowing it to run on a Mobile Battery Pack for several hours. The Panthera E is able to perform the following contrast methods: Phase contrast and Darkfield.
- Trinocular head Siedentopf type 30° inclined, 180° rotating
- Wide field high eyepoint eyepiece N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecups
- Reversed quadruple revolving nosepiece
- CCIS® UC Plan Plan Achromat objectives 4x, 10x, 40x S, 100x S-oil
- Coaxial coarse and fine focusing adjustment with tension adjustment
- Built in low position rackless coaxial stage (Right-hand control)
- Focusable Abbe condenser N.A. 09/1.25 with iris diaphragm and slot
- 1 W LED illumination with intensity control LED indicator
- Power supply 100-240V
- immersion oil (5ml), power cord, allen hexagonal key, thumb screw, vinyl dust cover, instruction manual
| MSRP | 1,787.00 |
|---|---|
| Head Type | Trinocular |
| STEM Approved | Yes |
| Illumination | LED |
| Power | Corded |
