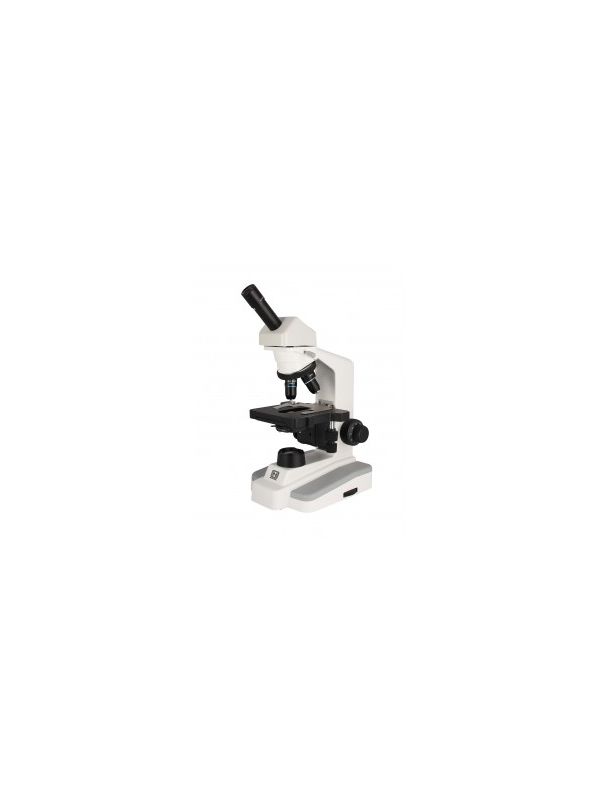

National 167-ASC
SKU
167-ASC
$650.25
Superior in design and in performance, the 160 series incorporates a wide range of features designed for university and laboratory use. Superb optical clarity and reliable mechanical engineering assure years of top performance.
- Widefield 10x /18mm eyepiece, pointer standard in one eyepiece.
- 45° inclined monocular viewing head rotates 360° for easy sharing by more than one student.
- DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) super high contrast objectives.
- Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives, features textured rubber knurling for easy grip. Mounted in reverse position to facilitate ease in changing slides.
- 3W LED variable illumination 110V-220V external auto-switching power supply.
- Illuminated on/off switch, 3-wire grounded cord and plug.
- 0.5A time delay fuse.
- Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated.
- Large 140mm x 135mm (5-1.2 in. x 5-1/4 in.) rackless stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls, 70mm (x) by 50mm (y) movement with graduations of 0.1mm.
- 1.25 N.A. Abbe condenser has rack & pinion focusing, iris diaphragm, swing-out filter holder with clear blue, green and yellow filters supplied.
- Rugged cast aluminum, gray enamel finish.
| MSRP | 765.00 |
|---|---|
| Head Type | Monocular |
| STEM Approved | No |
| Illumination | Halogen |
| Power | Corded |
