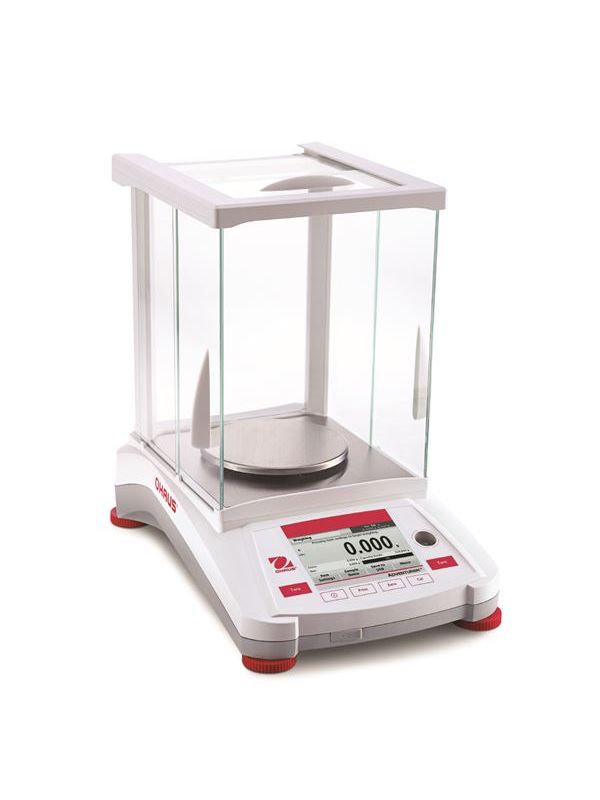

Ohaus AX124/E
SKU
30100601
Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.
Applications
- Weighing, Parts Counting, Percent Weighing, Check Weighing, Animal/Dynamic Weighing, Totalization/Statistics, Formulation, Density Determination, Display Hold
Display
- 4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness
Operation
- AC adapter (included)
Communication
- RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.
Construction
- Metal base, ABS top housing, stainless steel pan, glass draftshield with two piece top mounted side doors and sliding top door, illuminated up-front level indicator, integral weigh below hook, security bracket, calibration lock, full housing in-use cover
Design Features
- Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages
SPECIFICATIONS
| Maximum Capacity | 120 g |
| Readability | 0.1 mg |
| Pan Size | 3.5 in (90 mm) |
| Internal Calibration | AutoCal™ - Automatic |
| Draftshield | Included |
| Auxiliary Display Model | Available as an Accessory |
| Battery Life | Not Applicable |
| Communication | RS232 (Included); USB; USB Host |
| Dimensions | 13.39 in x 13.93 in x 9.05 in (340 mm x 354 mm x 230 mm) (HxLxW) |
| Display | Full-Color 4.3 in Touchscreen WQVGA |
| In-use cover | Included |
| Legal for Trade | Not Applicable |
| Linearity ± | 0.2 mg |
| Minimum Weight (USP, 0.1%, typical) | 0.2 g |
| Net Weight | 11.3 lb (5.1 kg) |
| Pan Construction | Stainless Steel |
| Power | AC Adapter (Included) |
| Repeatability (typical) | 0.1 mg |
| Stabilization Time | 3 s |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Gram; Milligram; Carat; Ounce; Ounce Troy; Pound; Pennyweight; Grain; Newton; Momme; Mesghal; Hong Kong Tael; Singapore Tael; Taiwan Tael; Tical; Tola; Baht; Custom |
| Working Environment | 50°F – 85°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing) |
| MSRP | 3,249.00 |
|---|
