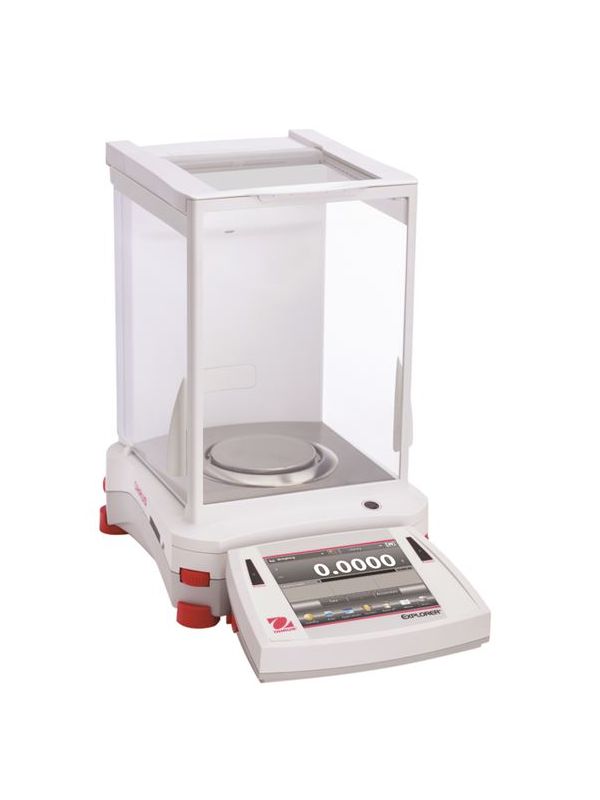

Ohaus EX223
SKU
83021341
Intelligent Performance No Matter How Difficult the Task! A large color touchscreen gives access to the advanced application modes and icon-driven application software features such as user manager, library, and minimum weight indication. Explorer features fast stabilization times, optimized linearity and repeatability specifications, enhanced vibration filtering and the choice of traditional calibration or AutoCal™ models. Explorer's sturdy modular design includes metal housing and a display that can be separated from the weighing base and tower- or wall-mounted for easy viewing in any workspace.
Product Specifications
| Maximum Capacity | 220 g |
| Readability | 1 mg |
| Pan Size (Ø_Diameter) | 130.0 mm (5.1 in) |
| Internal Calibration | AutoCal™ - Automatic |
| Draftshield | Included |
| Dimensions (Height) | 350.0 mm (13.8 in) |
| Dimensions (Width) | 230.0 mm (9.1 in) |
| Dimensions (Length) | 393.0 mm (15.5 in) |
| Linearity ± | 0.002 g |
| Minimum Weight (USP), Typical | 2.4 g |
| Display | Full-color 5.7 in VGA, touch screen |
| Power | AC Adapter (Included) |
| Legal for Trade | Not Applicable |
| Test Weight | 200g, OIML F1 or ASTM CL 4 |
| Auxiliary Display Model | Not Applicable |
| Inuse cover | Included |
| Working Environment | 10°C – 30°C, 85%RH, non-condensing |
| Battery Life | Not Applicable |
| Pan Construction | Stainless Steel |
| Tare Range | -200g–200g |
| Working Environment | 50°F – 86°F, 85%RH, non-condensing |
| Stabilization Time | 1 s |
| Minimum Weight | 0.16 g |
| Net Weight | 6.9 kg (15.2 lb) |
| Repeatability (typical) | 0.001 g |
| MSRP | 3,538.00 |
|---|
