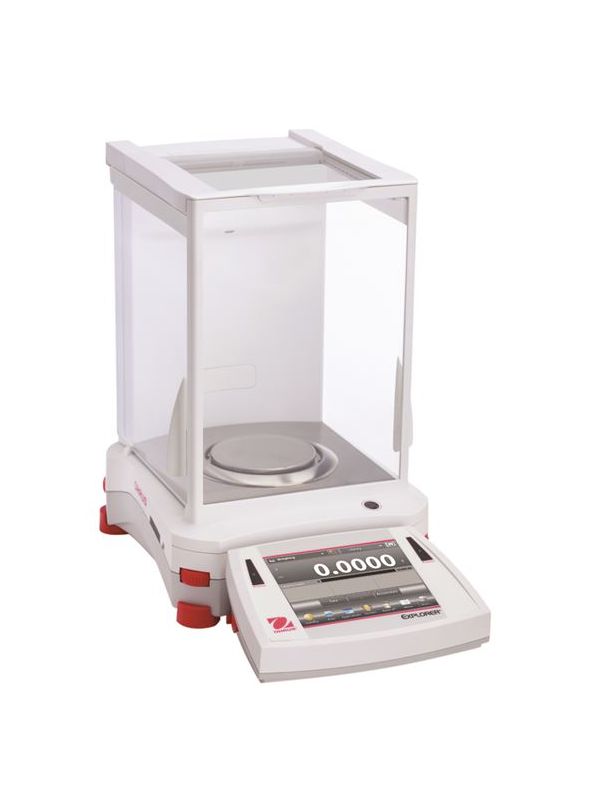

Ohaus EX223/E
SKU
30061979
Intelligent Performance No Matter How Difficult the Task!
A large color touchscreen gives access to the advanced application modes and icon-driven application software features such as user manager, library, and minimum weight indication.
Explorer features fast stabilization times, optimized linearity and repeatability specifications, enhanced vibration filtering and the choice of traditional calibration or AutoCal™ models.
Explorer's sturdy modular design includes metal housing and a display that can be separated from the weighing base and tower- or wall-mounted for easy viewing in any workspace.
| Maximum Capacity | 220 g |
| Readability | 1 mg |
| Pan Size (Ø_Diameter) | 130.0 mm (5.1 in) |
| Internal Calibration | Not Applicable |
| Draftshield | Included |
| Dimensions (Height) | 350.0 mm (13.8 in) |
| Dimensions (Width) | 230.0 mm (9.1 in) |
| Dimensions (Length) | 393.0 mm (15.5 in) |
| Linearity ± | 0.002 g |
| Minimum Weight (USP), Typical | 1.6 g |
| Display | Full-color 5.7 in VGA, touch screen |
| Power | AC Adapter (Included) |
| Legal for Trade | Not Applicable |
| Test Weight | 200g, OIML F1 or ASTM CL 4 |
| Auxiliary Display Model | Available as an Accessory |
| Inuse cover | Included |
| Working Environment | 10°C – 30°C, 85%RH, non-condensing |
| Battery Life | Not Applicable |
| Pan Construction | Stainless Steel |
| Tare Range | To capacity by subtraction |
| Working Environment | 50°F – 86°F, 85%RH, non-condensing |
| Stabilization Time | 1 s |
| Net Weight | 6.9 kg (15.2 lb) |
| Repeatability (typical) | 0.001 g |
| MSRP | 3,036.00 |
|---|
