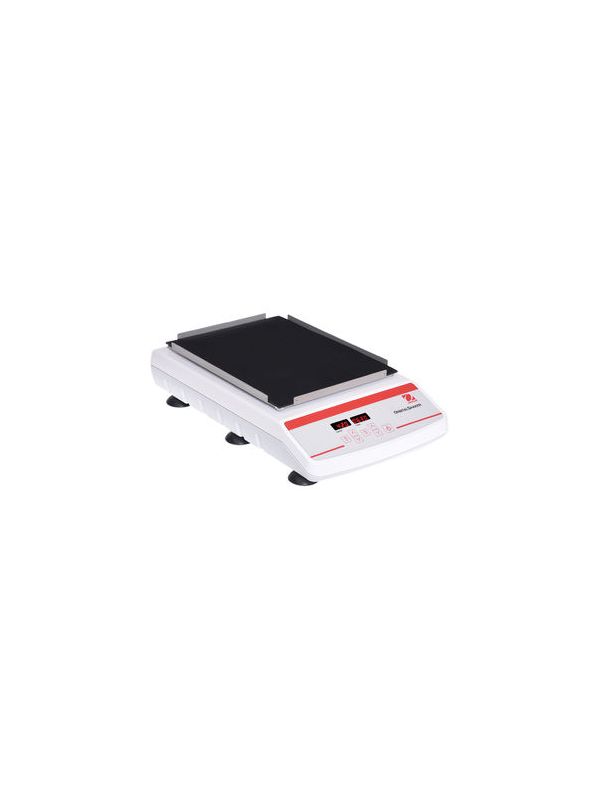

Ohaus Orbital Shaker, Light Duty - Digital SHLD0415DG
SKU
30391912
$1,397.83
Choose from Four Models for Light Duty Shaking The variable speed, microprocessor control provides consistent, uniform shaking action. The microprocessor displays the last setpoint and will restart if power is interrupted (on digital models). Triple eccentric drive with permanently lubricated ball bearings and maintenance-free, brushless DC motor provide reliable service and continuous duty operation. Units slowly increase speed to desired setpoint to avoid splashing. Digital models feature overload protection – audible & visual signals activate when system detects an obstruction or tray overload.
Product Specifications
| Motion | Orbital, 15 mm |
| Capacity (text) | 3.6 kg |
| Tray Size (Length) (imp:) | 11.75 in |
| Tray Size (Width) | 22.2 cm |
| Tray Size (Length) | 29.9 cm |
| Tray Size (Width) (imp:) | 8.75 in |
| Control | Digital |
| Drive System |
Brushless DC Motor;
Triple Eccentric |
| Tray Construction | Aluminum |
| Timer | 1 second – 160 hours |
| Speed Range | 40 rpm – 300 rpm |
| Orbit | 15.0 mm (0.6 in) |
| Dimensions (Height) | 10.8 cm (4.3 in) |
| Working Environment | -10°C – 60°C, 80%RH, non-condensing |
| Net Weight | 10.9 kg (24.0 lb) |
| Safety Certification | TUV |
| Dimensions (Width) | 26.0 cm (10.3 in) |
| Working Environment | 14°F – 140°F, 80%RH, non-condensing |
| Power Consumption | 25 W |
| Dimensions (Length) | 41.3 cm (16.3 in) |
| Power | 120V, 5A, 50/60Hz |
| Speed Accuracy | ±2 rpm, Above 100 rpm ±2% of set speed |
| MSRP | 1,837.00 |
|---|
