Swift M2652CT-3
SKU
M2652CT-3
$610.20

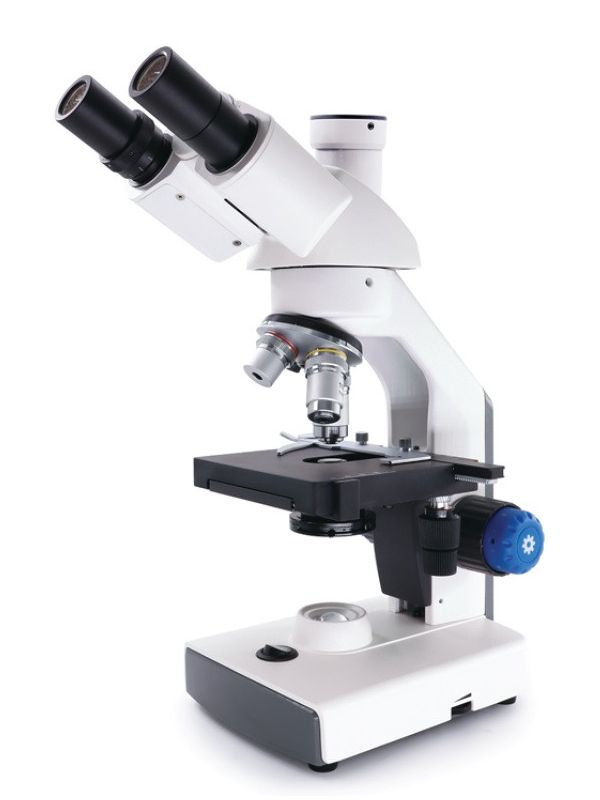

The M2652CT-3 is an advance trinocular, c-mount camera ready, educational microscope. This microscope features a Siedentopf trinocular head, low-drive mechanical stage, spring specimen holder, easy to use coaxial focusing system, 0.5X C-mount and 1.25 condenser. M2652CT-3 is also rechargeable, with cool and efficient dimmable LED illumination.
OPTICAL SYSTEM
- (2) WF10x /18mm eyepieces.
- Siedentopf trinocular viewing head with 30° inclined eyepieces. 55-75mm IPD.
- 50/50 Light Split
- 0.5X C-Mount (Included)
- DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), and 40xR (0.65 N.A.) achromatic objectives.
- Four-hole nose piece is ball-bearing mounted for smooth, precise positioning of objectives.
- 100xR (1.25 N.A.) objective available (sold separately)
ILLUMINATION
- Variable LED light provides bright, white illumination.
- 8 hour recharge allows for up to 40hrs of use.
ELECTRICAL
- 110V - 220V switching power supply, unit shipped with American plug.
FOCUSING
- Coaxial coarse and fine focusing controls.
- Fine focus knob is graduated.
- Safety rack stop prevents damage to slides and objective lenses
STAGE
- Large 120mm x 120mm low-drive mechanical stage.
- Spring loaded specimen holder.
- Built-in 1.255 N.A. condenser with iris diaphragm
- Upper limit adjustable rack stop
FRAME
- Base dimensions: 7-1/2 in. x 5-1/4 in. (191mm x 134mm)
- Height: 14-1/4 in. (362mm). *14-3/4 in. (375mm) with C-Mount attached*
- Net wt. 8 lbs (3.63 kgs)
| MSRP | 678.00 |
|---|---|
| Head Type | Trinocular |
| STEM Approved | Yes |
| Illumination | LED |
| Power | Cordless - Rechargeable |
