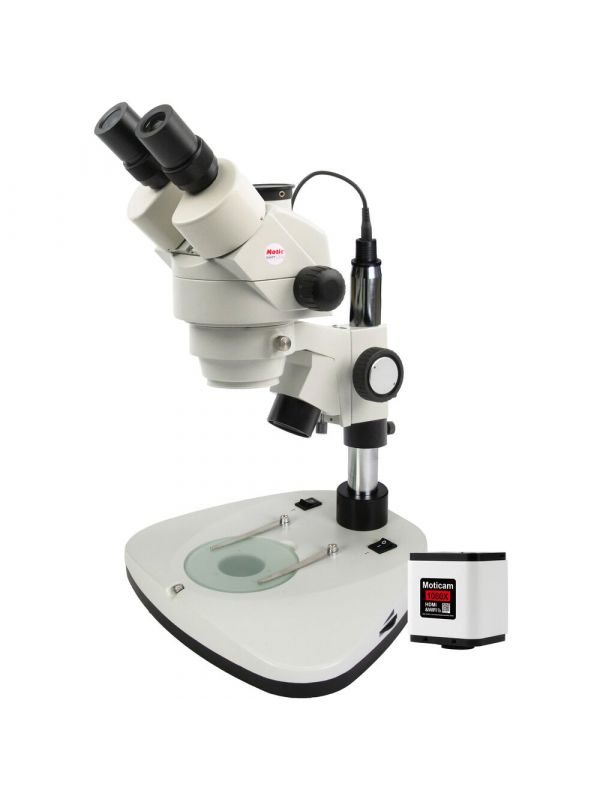

Swift M30TZ-SM99CL-HD
SKU
M30TZ-SM99CL-HD
$2,087.10
The M30TZ is ideal for laboratory, industrial, and educational use. These stereo microscopes feature zoom objectives with a continuous magnification range of 7.5X-45X, offering added versatility that is not an option with fixed power stereo microscopes. Corded energy-efficient LED stand with variable transbase illumination to control brightness and a top light that adjusts for optimal lighting angles.
CAMERA
- Sensor Type: CMOS
- Sensor Size: 1/2.8"
- Light Sensitive Area: Diagonal 6.4mm
- Capture Resolution: 8MP (3864x2228 pixels)
- Pixel Size: 1.45x1.45um
- Scan Mode: Progressive
- Shutter Type: Rolling Shutter
- USB 2.0: A type female chassis, host, mouse support
- USB 3.0: A type female chassis connector, device, UVC
- HDMI: 3840x2160@30HZ
- Network Port: 100Mbps RJ45 (no indicator)
- SD Card: SD2.0, SD3.0 support (SDHC, SDXC card support)
- Power Button: Flick switch
- WiFi Reset Button: Long press to reset
- Software: MotiConnect for Android/iOS; Motic Images Plus 3.1 for Windows/Mac OS
- Package includes: 12V Power Adapter, CS Ring, Motic 4-dot calibration slide, Dust Cap, Manual, 12mm lens, Adapter φ30/φ38, Macro Tube, Macro Calibration card
MAGNIFICATION
0.75X to 4.5X continuous zoom
OPTICAL SYSTEM
Paired widefield eyepieces are 45° inclined, with diopter adjustment. Interpupillary adjustment from 55mm to 75mm.
Trinocular Port accepts video adapter.
Interlocked eyepiece tubes with diopter for increased focus acuity.
Viewing head rotates 360°, locks in place by tightening thumb screw.
Paired objectives are parfocalled, parcentered, and achromatic.
Magnification changed by rotating magnification dial.
ILLUMINATION
3W LED illumination provides bright, white light with virtually no heat.
Top light adjusts for optimal lighting angles.
Variable transbase illumination allows user to control brightness.
Easy-to-replace LED illumination is energy-efficient and rarely requires bulb replacement.
Dual illumination switches allow for 3 light settings.
FOCUSING
Rack and pinion focusing with slip clutch and tension adjustment.
"Slip-clutch" system prevents users from damaging the focusing mechanism.
STAGE
100mm reversible black/white plastic contrast plate and 100mm frosted glass stage plate.
Locked-on stage clips.
FRAME
Rugged, cast metal frame.
Heavy-duty post mount with locking support collar, permits up or down adjustment of viewing head to accommodate different sized objects on stage.
PACKING
Molded styrofoam container with eyeshields and vinyl dustcover.
Individual Dimensional Ship wt. 36 lbs.
| MSRP | 2,319.00 |
|---|
